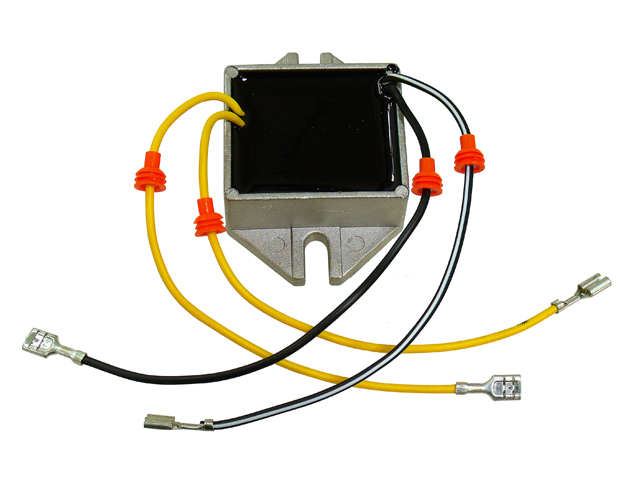

Sno-X Jännitteensäädin Rotax

81-621 INSTRUCTIONS

1) ATTACH BLACK WIRE WITH WHITE LINE TO THE RUN NON-REGULARIZED POSITIVE (+)

2) ATTACH BLACK WIRE TO THE RUN  NON-REGULARIZED NEGATIVE (-)

3) ATTACH THE YELLOW WIRE TO THE REGULARIZED POSITIVE (+) OUTPUT CIRCUIT

4) ATTACH THE OTHER YELLOW WIRE TO THE OTHER REGULARIZED POSITIVE (+) OUTPUT CIRCUIT

5) IF IT IS NOT NECESSARY TO CONNECT THE SECOND POSITIVE OUTPUT,  BE SURE TO PROTECT  THE WIRE

    END TO AVOID ANY CONTACT WITH OTHER PARTS  OR DAMAGE WILL RESULT

*THIS A/C VOLTAGE REGULATOR MUST BE INSTALLED ON A SNOWMOBILE WITH MANUAL START ONLY
