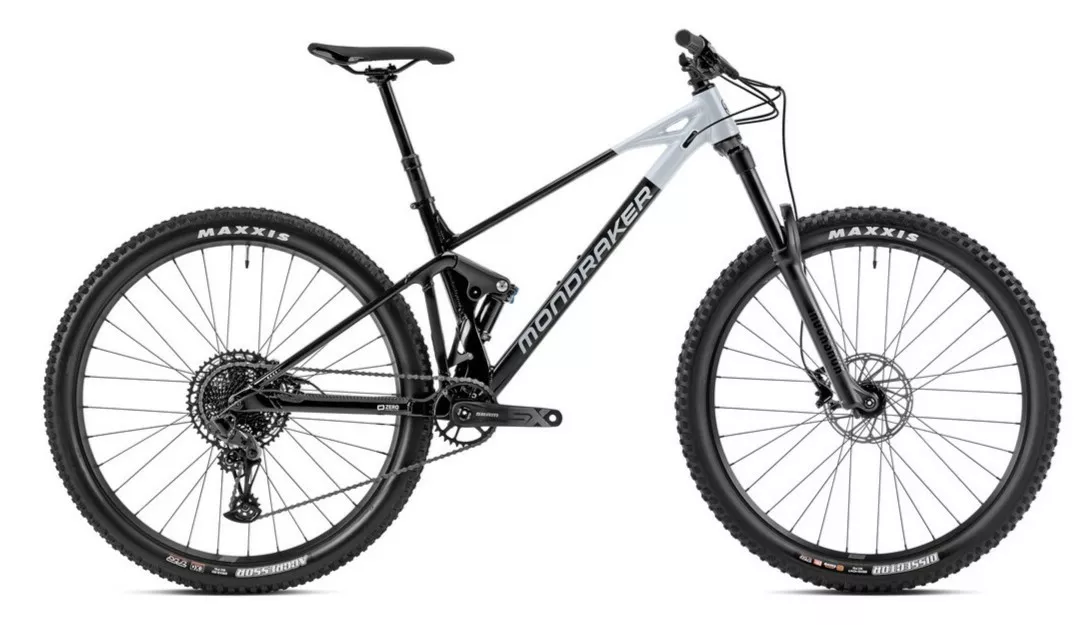

MONDRAKER 23 RAZE BLACK/WHITE

HUOM! TOIMITUS EI SISÄLLÄ POLKIMIA!

Mondraker RAZE – monipuolinen trail-pyörä huippuluokan teknologialla
Etsitkö maastopyörää, joka tarjoaa koko paketin kohtuulliseen hintaan? Mondraker RAZE on trail-pyörien moniosaaja, joka yhdistää kevyet nousut, vauhdikkaat alamäet ja modernin teknologian yhteen runkoon.

Frame:
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Sizes:
S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock:
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings

Shock settings:
Light compression, light rebound, air volume spacer 0.6

Fork:
RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset.
Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset:
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar_
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips:
ONOFF Twin, 1lock-on, 135mm

Seatpost:
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle:
MDK series PU 2023

Front brake:
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake:
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever:
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

Rims:
MDK-EP1 29, 30mm internal width, tubeless ready, 32 spokes

Spokes:
CN round stainless steel

Front hub:
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

Rear hub:
Formula DHT148 Boost 12x148mm, sealed bearings, IS 6 bolts

Front tire:
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire:
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Crankset:
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm

Rings:
32T, steel, X-Sync 2

Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm

Chain:
Sram SX Eagle, 12s, Powerlock

Rear derrailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Casette:
Sram PG-1210, 11-50T, 12s

Derailleur hanger:
Sram UDH

Weight:
15,9 kg
