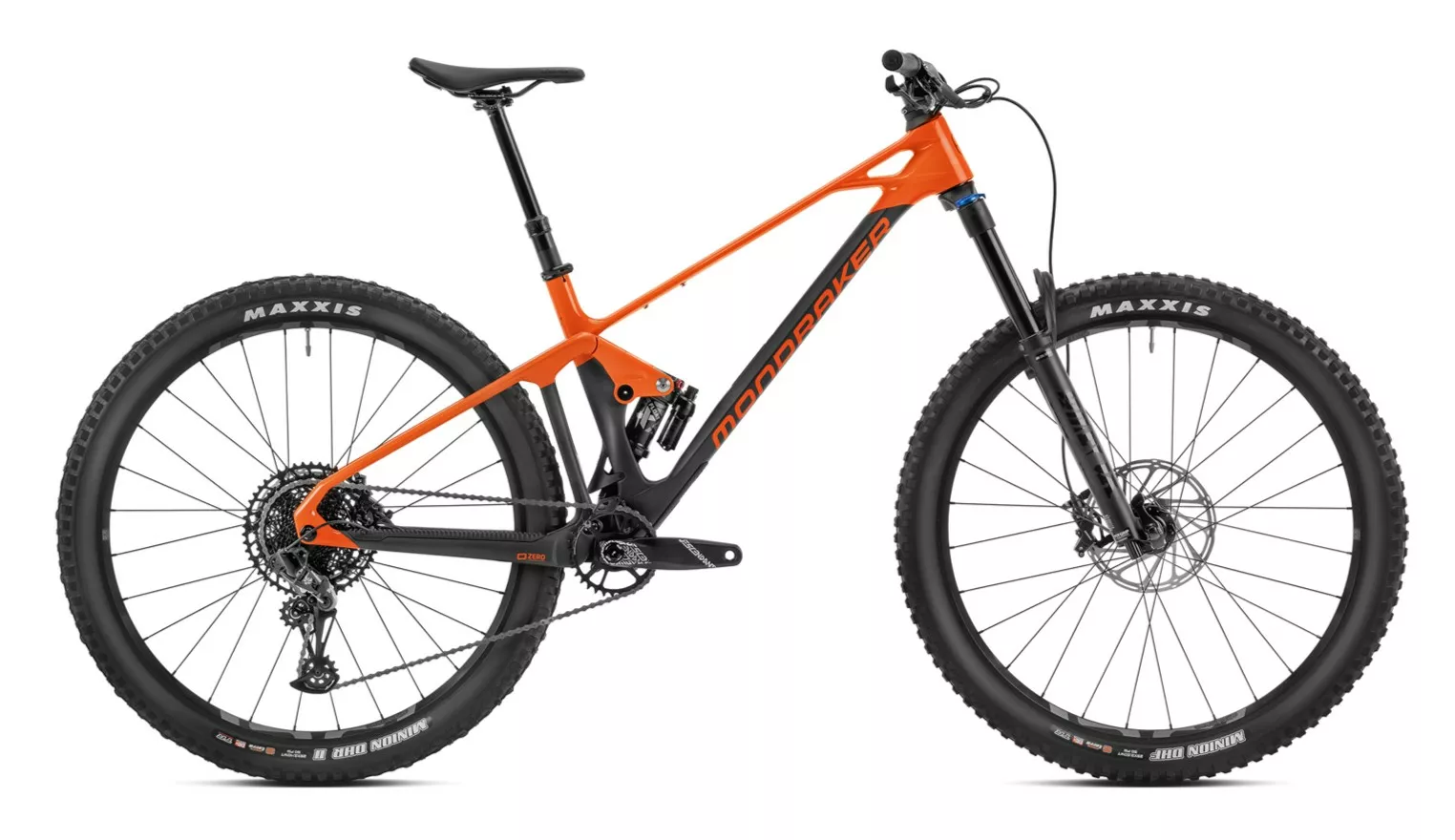

MONDRAKER FOXY CARBON R Orange

HUOM! TOIMITUS EI SISÄLLÄ POLKIMIA!

Foxy 29 Stealth Air on täysjousto, joka on tehty vauhdikkaaseen enduroon ja monipuoliseen trail-ajoon. Kevyt hiilikuiturunko, moderni geometria ja 150/160 mm joustomatkat Foxin huippukomponenteilla tekevät ajosta hallittua niin jyrkässä laskussa kuin teknisissä nousuissa.
SRAM NX Eagle 1x12 -vaihteisto, Maxxisin tubeless-renkaat ja nelimäntäiset SRAM G2 R -levyjarrut pitävät huolen siitä, että pyörä toimii tilanteessa kuin tilanteessa. Dropper-tolppa, leveä ohjaustanko ja laadukkaat E*Thirteen-kiekot viimeistelevät kokonaisuuden.

Frame
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 500mm

Rear shock
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings
Light compression, light rebound, air volume spacer 0.6

Fork
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Stem
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips
ONOFF Desert, 1lock-on, 135mm

Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle
SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever
Sram G2 R, tool-free reach adjust

Rims
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub

Front tire
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Crankset
Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

Rings
32T, steel, X-Sync 2

Bottom bracket
Sram DUB BSA, sealed bearings, 73mm

Chain
Sram NX Eagle, 12s, Powerlock

Rear derrailleur
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers
Sram Trigger NX Eagle, 12s, X-Actuation 1:1

Casette
Sram XG-1230, 11-50T, 12s

Derailleur hanger
Sram UDH

Weight
14,9 kg
