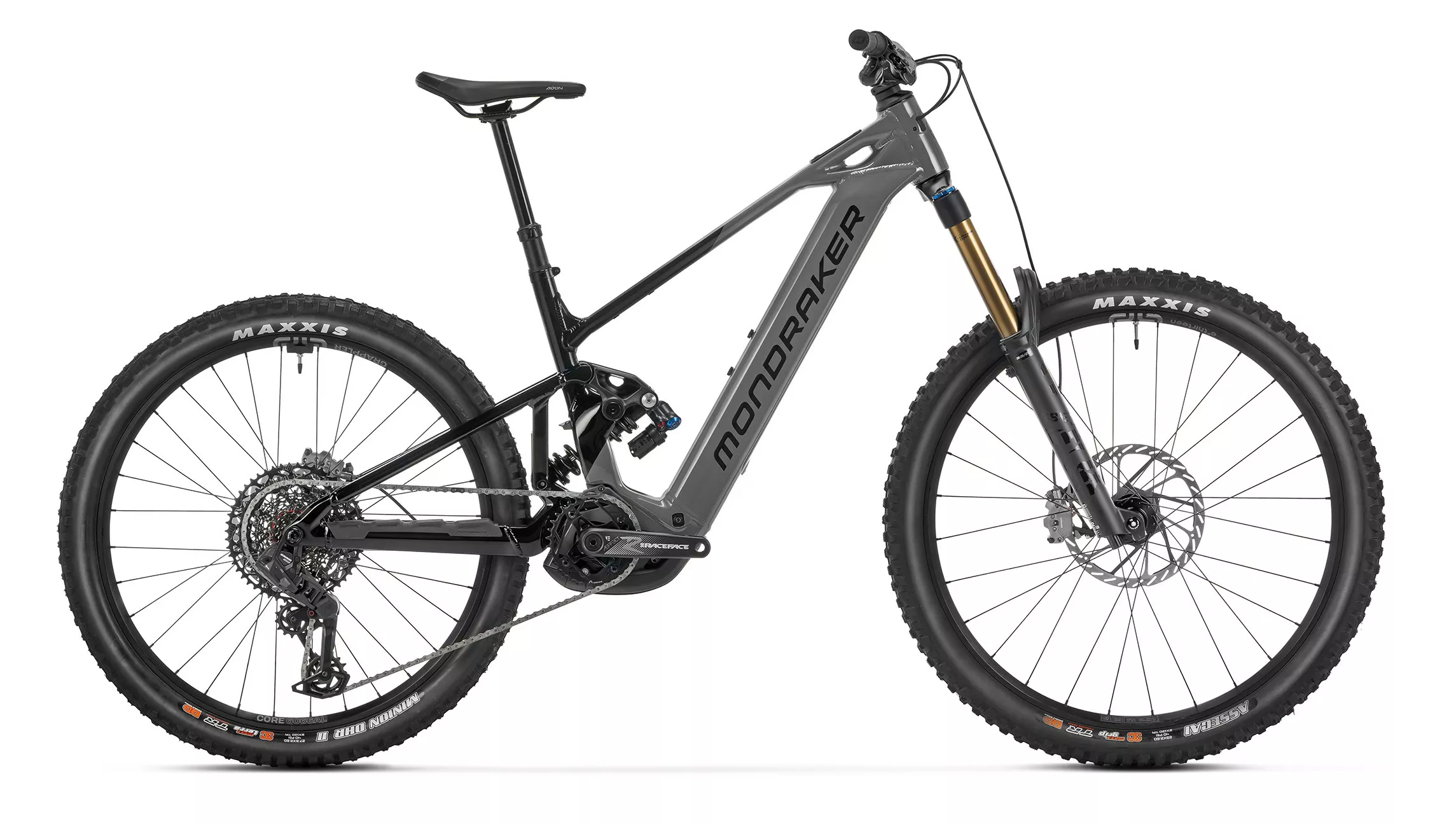

MONDRAKER LEVEL RR Nimbus Grey

HUOM! TOIMITUS EI SISÄLLÄ POLKIMIA!

Level RR - sähköpyörä, jossa huippukomponentit kohtaavat voiman
Haluatko enemmän kuin perusratkaisun? Level RR on tehty niille, jotka vaativat sähköpyörältä parasta. Se yhdistää uuden Bosch Performance Line CX Gen 5 -moottorin (100 Nm vääntöä) ja irrotettavan 800 Wh akun, mutta vie ajokokemuksen uudelle tasolle ensiluokkaisilla komponenteilla.
Huippuvarusteet:
Fox 38 Kashima Factory Grip X2 -etuhaarukka - 180 mm joustoa, tarkat säädöt nopealle ja hitaalle puristukselle sekä palautukselleFox DHX2 Performance Elite -takaiskari - säädettävä esijännitys, low-speed compression ja rebound
SRAM Maven Bronze -jarrut - tehokas pysäytysvoima, SwingLink-teknologia ja työkaluitta säädettävä reach
SRAM S1000 Eagle AXS T-Type 12-vaihteinen vaihteisto (10?52T, 34T eturatas) - langaton, tarkka ja kestävä
Maxxis Assegai 29"x2.6" WT (etu) & Minion DHR II 27.5"x2.6" WT (taka) - maksimaalista pitoa ja hallittavuutta kaikissa olosuhteissa
Frame:
Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers

Sizes:
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock:
Fox DHX2 Performance Elite, 205x65mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings:
CL50 compression, RL40 rebound, Rezi LML, Bleed 1,1, B60. Spring rate:S size 350 lbs, M size 400 lbs, size ML 450 lbs, L size 500 lbs, XL size 500 lbs
Fork:
Fox 38 29 Float GRIPX2 Factory Kashima, 180mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset:
Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem:
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar:
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips:
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle:
FIZIK Terra Aidon X5 145mm

Front brake:
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

Rims:
e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes:
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub:
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub

Front tire:
Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead

Rear tire:
Maxxis Minion DHR II 27?5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

Crankset:
Race Face Aeffect ebike, All sizes: 160mm

Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain:
Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur:
Sram S1000 Eagle AXS T-Type, 12s

Shift levers:
Sram Eagle AXS Pod MMX, 12s

Casette:
Sram XS-1270, 10-52T, T-Type, 12s

Weight:
26,9 kg

Display:
Kiox 400C / Bosch Mini Remote

Motor:
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery:
Bosch Powertube 800Wh
