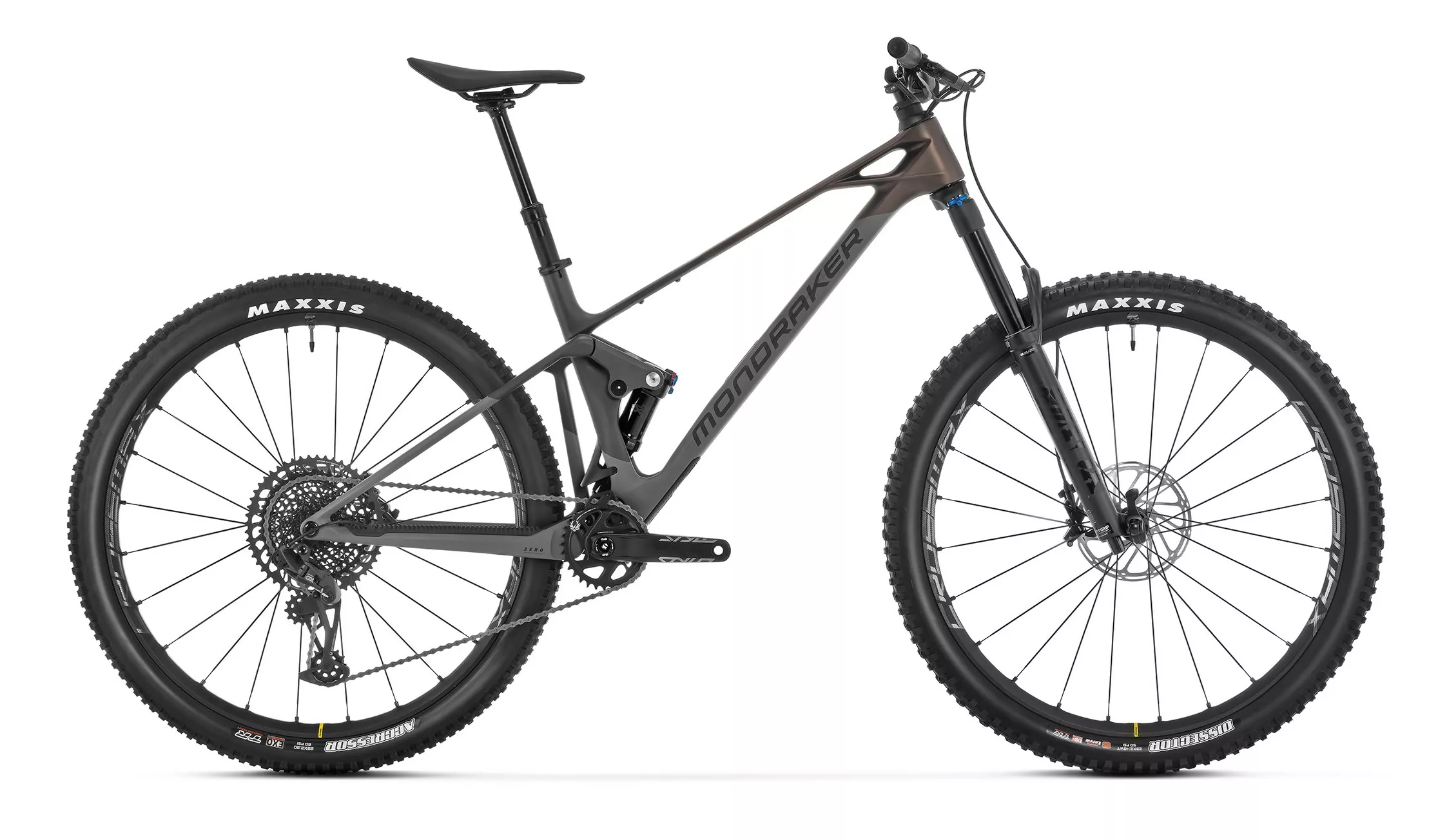

MONDRAKER RAZE CARBON R Bronze

HUOM! TOIMITUS EI SISÄLLÄ POLKIMIA!

Mondraker Raze on tarkkaan hiottu, alusta alkaen trail-käyttöön suunniteltu maastopyörä, joka yhdistää poikkeuksellisen kiipeämistehokkuuden ja varman alamäkikontrollin.

Heti lanseerauksestaan lähtien Raze on noussut koko luokkansa vertailukohdaksi. Sen Forward Geometry -runkogeometria on optimoitu trail-ajoon, ja Mondrakerin patentoitu Zero Suspension System -jousitus tarjoaa tasapainoisen ja hallitun ajotuntuman kaikissa maastoissa.
Huippuluokan hiilikuiturunko tekee Raze Carbon R:stä erittäin kevyen, mutta samalla jäykän ja kestävän. Carbon R -malli on Raze-sarjan hiilikuiturunkojen entry-tason vaihtoehto, joka tarjoaa pääsyn premium-tason runkoon edullisimmalla hinnalla.

Frame
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 500mm

Rear shock
Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings
Light compression, light rebound, air volume spacer 0.6

Fork
Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips
Onoff Desert, 1lock-on, 135mm

Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Saddle
Fizik Vento Argo X5

Front brake
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever
Sram G2 R, tool-free reach adjust, lever pivot bushings

Rims
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

Spokes
Mavic 24 straight-pull double butted spokes

Front hub
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

Rear hub
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub

Front tire
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Crankset
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52
Rings
32T, CNC-machined alloy, X-SYNC 2

Bottom bracket
Sram DUB BSA, sealed bearings, 73mm

Chain
Sram NX Eagle, 12s, Powerlock

Rear derrailleur
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers
Sram Trigger NX Eagle, 12s, X-Actuation 1:1

Casette
Sram XG-1275, 10-52T, 12s

Derailleur hanger
Sram UDH

Weight
13,6 kg
