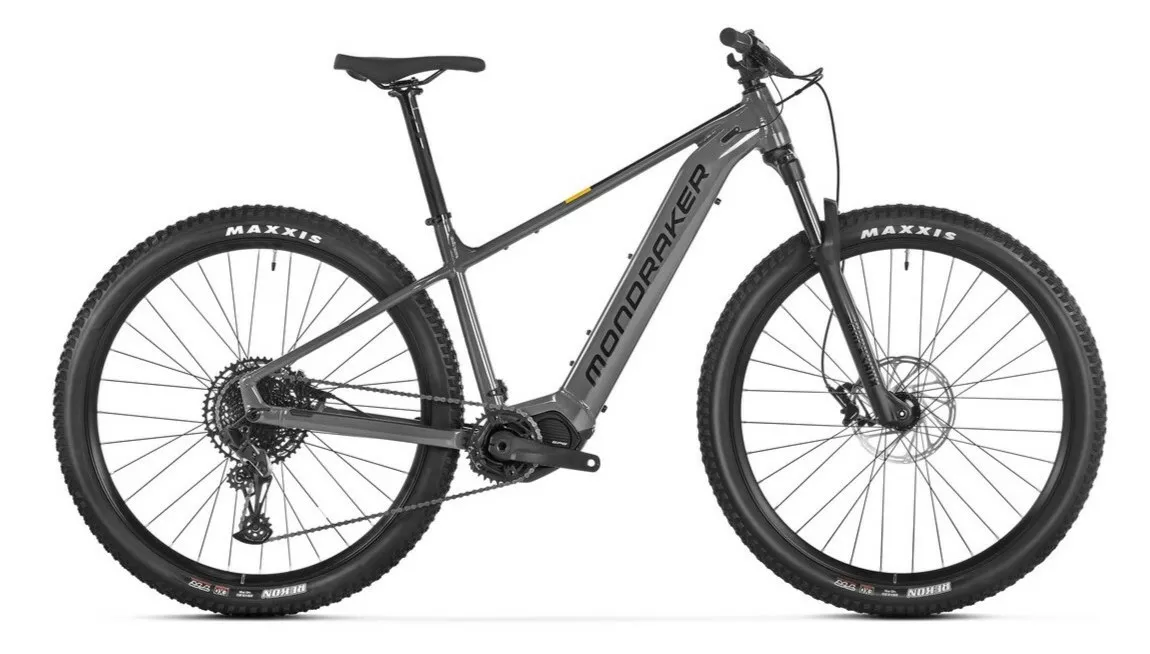

MONDRAKER THUNDRA NIMBUS GREY

HUOM! TOIMITUS EI SISÄLLÄ POLKIMIA!

Frame
Thundra 6061 Xtralite Full Butted Alloy, Forward Geometry, integrated internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor.*Optional external battery

Sizes
XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm

Fork
RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips
Onoff Twin, 1lock-on, 135mm

Seatpost
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm

Saddle
MDK ebike black

Front brake
Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

Rims
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes
Mavic J-bend double butted, contactless lacing

Front hub
Mavic, Boost 15x110mm, IS 6 bolts

Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

Front tire
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Rear tire
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Crankset
FSA Shimano EP8, 165mm

Rings
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain
Sram SX Eagle, 12s, Powerlock

Rear derrailleur
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Shift levers
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

Casette
Sram PG-1210, 11-50T, 12s

Derailleur hanger
Mondraker M068

Others
*Optional external battery: Simplo 360Wh

Display
Shimano EN500

Motor
Shimano STEPS EP600

Battery
Simplo internal 720Wh
