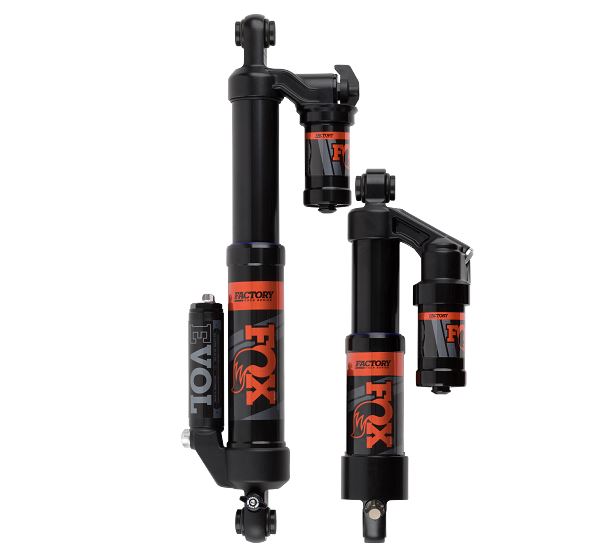

FOX Telaston iskunv. Float 3 QS3/QSL-QSR LW - Lynx Shredder

Sopii myös Lynx Boondocker DS 3900/4100

Adjustments:

FLOAT air spring

EVOL air chamber

QS3–3 position compression (front track), with lockout mode (rear track)

QSR–3 position rebound

Features:

Optimized lightweight shock design

Spiral groove bypass

One-piece, aluminum spherical bearings

High-flow velocity-sensitive damping

Fully re-buildable and re-valvable

Air Spring Pressures:

Front Track Main - 35psi

Rear Track Main - 145psi

EVOL - 280psi

Top Mount: Eyelet

Bottom Mount: Eyelet

Rebuild P/n: FT: 803-01-572; RT: 803-01-574

Reservoir: Piggyback

Front Track Extended Length: 13.8800

Front Track Compressed Length: 10.2400

Front Track Travel: 6.0700

Rear Track Extended Length: 13.8800

Rear Track Compressed Length: 15.6100

Rear Track Travel: 6.0700

Fitment notes: Track (Front & Rear)
