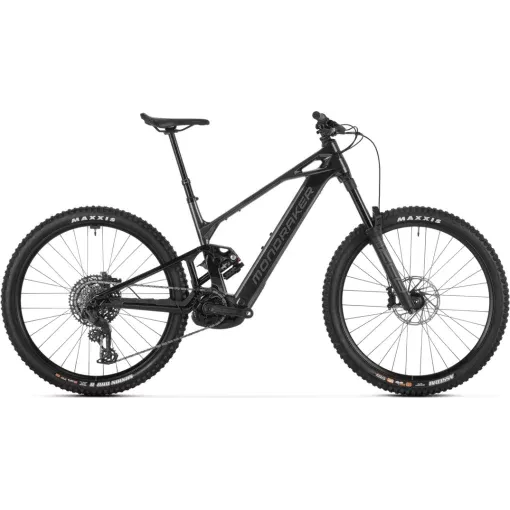

MONDRAKER Crafty Carbon S Vortex Grey

HUOM! TOIMITUS EI SISÄLLÄ POLKIMIA!

Mondraker Crafty Carbon S - sähkömaastopyörä

Suosikin valitseminen ei ole helppoa – eikä tarvitsekaan. Crafty Carbon -sähkömaastopyörän vetovoima ei perustu pelkästään tehoon, joustomatkaan tai pitkään toimintamatkaan. Tämä mallisto edustaa tinkimätöntä suorituskykyä ja modernia teknologiaa: Bosch CX Gen5 -moottori, irrotettava 800 Wh akku sekä tyylikkäästi yläputkeen integroitu Kiox 400 -näyttö.

Kyseessä on huippuluokan täysjousitettu sähköpyörä, joka on suunniteltu vaativaan maastoajoon ja pitkille ajolenkeille.

Lisätiedot:
Koko: S, M, ML, L, XL
Merkki: Mondraker
Malli: Täysjousto
vannekoko: 29"
Joustomatka: 150-180mm
EAN: 8435803007437
Valmistajan koodi: 010.26293

Frame
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock
Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer

Fork
RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload

Headset
Acros custom ZS56/ZS56, 1-1/8?, 1.5? head tube, Internal cable routing, sealing plugs without blocklock

Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost
X-Fusion Manic diameter 31.6mm, 1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531×200

Saddle
Ergon SM-10

Front brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever
Sram DB8 Stealth, tool reach adjust, lever pivot bushings

Rims
WTB Sportterra Tough, 6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes
WTB Straight gauge spokes & black brass locking nipples

Front hub
WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts

Rear hub
WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub

Front tire
Maxxis Assegai 29×2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

Rear tire
Maxxis Minion DHR II 29×2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

Crankset
E.13 Helix Core E*Spec Plus, All sizes: 160mm

Rings
Sram Eagle 34T T-Type, direct mount, steel, CL55

Chain
Sram 70 T-Type, 12s Flattop, PowerLock

Rear derrailleur
Sram 70 Eagle, T-Type, 12s

Shift levers
Sram Trigger 70, 12s, T-Type Actuation

Casette
Sram XS-1270, 10-52T, 12s

Display
Kiox 400 / Bosch Mini Remote

Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery
Bosch Powertube 800Wh
